2SK series liquid ring vacuum pump 2SK series liquid ring vacuum pump 2SK series liquid ring vacuum pump

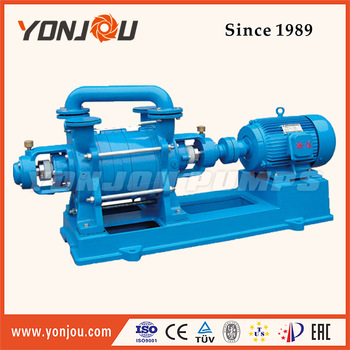

2SK series liquid ring vacuum pump

FOB Price:
US 1000-2000 / Set
Min.Order Quantity:
1 Set/Sets
Supply Ability:
500 Set/Sets per Month
Port:
NIngbo
Place of Origin:
Zhejiang, China (Mainland)
Payment Terms:
L/C,T/T,Western Union
Brand:
YonJou
Products Model:
2SK
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: YonJou

    Model Number: 2SK

    Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

  • Packaging Details: packing :standard export plywood case inlet diameter:70mm~300mm outlet diameter:70mm~250mm weight:88kg~500kg per each liquide ring vacuum pump
  • Delivery Detail: 10 DAYS

Specifications



Product Description



 Summarize:

1.2SK  SK series liquid ring vacuum pump is mainly used to pump air and other gas which is little corrosive, insoluble in water & with little solid.

2. The water input into the pump revolve with high speed to form pressure and closed water cavity to take away air from container in suction end.

3. Pump with double stage structure is higher vacuum degree, bigger pumping speed, compact structure, reliable operation, easy operating & maintenance.

4. China vacuum pump is widely used in food industry, textile industry, medicine industry, chemical industry, dipping, drying or other craft processes.





Product details:



Working Principle: Water ring vacuum pump
Main applications:   Air & Gas
Driver: Electric motor
Power Specs: 380/415V 3phase; 220/240V 1phase; 50hz/60hz
Max.permissible fluid temperature: 50°C(122°F)
Type of connection: Flange
Installation position: Horizontal
Casing parts material: Cast iron, stainless steel
Shaft seal type:    Mechanical seal, Packing seal
Free passage:   0mm
Limited vacuum: -0.097Mpa(-0.97bar)
Maximum drive rating:   55KW(75HP)
Maximum caliber:    125mm(5inch)
Flow rate range:    54-1800m3/h(237.6-7920US.GPM)



2SK TWO STAGE VACUUM PUMP Performance Data:



Model Pumping capacity(m3/min) Ultimate vacuum   pressure Motor power Speed Water consumption Diameter(mm)
Max.

When   the suction pressure is -0.093MPa

(-700mmHg)

(MPa)

(mmHg)

(KW) (r/min) (L/min) Inlet Outlet
2SK-1.5 1.5 0.9 -0.097(-725) 4 1440 10-15 40 40
2SK-3 3 2 -0.097(-725) 7.5 1440 15-20 40 40
2SK-6 6 4 -0.098(-735) 15 1460 25-35 50 50
2SK-12 12 8 -0.098(-735) 22 970 40-50 100 100
2SK-20 20 14 -0.098(-735) 45 740 60-80 125 125
2SK-30 30 20 -0.098(-735) 55 741 60-80 125 125











SK ONE STAGE VACUUM PUMP Performance Data:
